Redcat all-in-one Instructional audio system

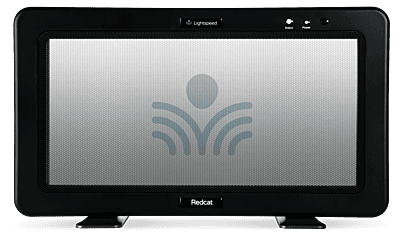

Powered by Lightspeed’s Access Technology, Redcat Point to Pair is a simple-to-use solution right out of the box. The unique flat-panel design fills the room with amazingly intelligible speech, enabling all students to hear every word.
The Redcat sound system works in any classroom configuration: high ceilings, glass walls and open spaces. There’s no interference with wi-fi networks or other classroom technology.
Redcat Point to Pair also grows with your instructional needs. As a part of a growing ecosystem, the Redcat audio system enables all types of student-centred learning, such as small group instruction and project-based learning.
Optional Redcat sound system components:

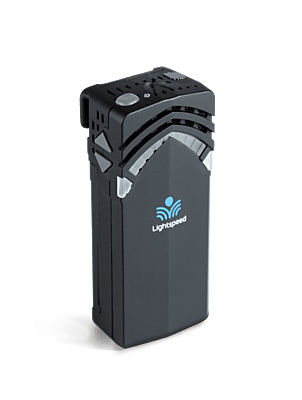

Pods and Activate Station with Bluetooth
Connect up to 12 pds to activate group learning. Activate station includes:
4 audio inputs
2 audio outputs
Bluetooth (x2) for streaming and lesson capture
Use in place of Media Connector
Lithium-ion Battery
Sharemike
Add a pass-around microphone for student participation.
Media Connector
Connect laptops and other audio sources.
Specifications
Wireless Communication: | 1.9 GHz + RF4CE |
Power Output: | 20W |
Total Harmonic Distortion (THD): | <1% @ 10W |
DC Power Input: | 16V/2.0A |
Amplifier Frequency Response: | 120 Hz – 13 kHz |
Audio Input (with volume controls): | One 3.5 mm Input |
ALD Output (with volume control): | One 3.5 mm Output |
Tone Control: | Bass and Treble |
Warranty: | 5 Years |
Dimensions (W x D x H): | 16” x 1.75” x 9.5” (406 mm x 45 mm x 241 mm) |
Weight (overall): | 2.9 lbs (1.3kg) |
Regulatory/Environmental Compliance: | CE, CUL, UL |
